JCM 900 4100model - caps and rebuild advice

Discussion in 'The Workbench' started by mikroman, Jan 15, 2022.

  1. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    1997 amp. There are no hotspots anywhere on any pcbs. All of the caps look original and new. No swelling or leaking. I tested all of the tubes with a tube tester and are in great shape. The mains fuse will blow after 5-6 seconds of power on. I think I should recap it. Check resistors. What would any of you suggest. Thanks

    DreamerDeceiver likes this.
  2. Pete Farrington

    Pete Farrington Well-Known Member

    Joined:
    Jan 18, 2021
    Messages:
    929
    Likes Received:
    945
    Location:
    Staffordshire UK
    Use a light bulb limiter rather than repeatedly subjecting an amp to fault current.
    Use a low power bulb, eg 40W, 60W.
    Take the valves out.
    Power up in standby mode and note how the light bulb brightness responds over time, eg 30 seconds.
    Switch standby into play mode and note how the light bulb brightness responds over time.

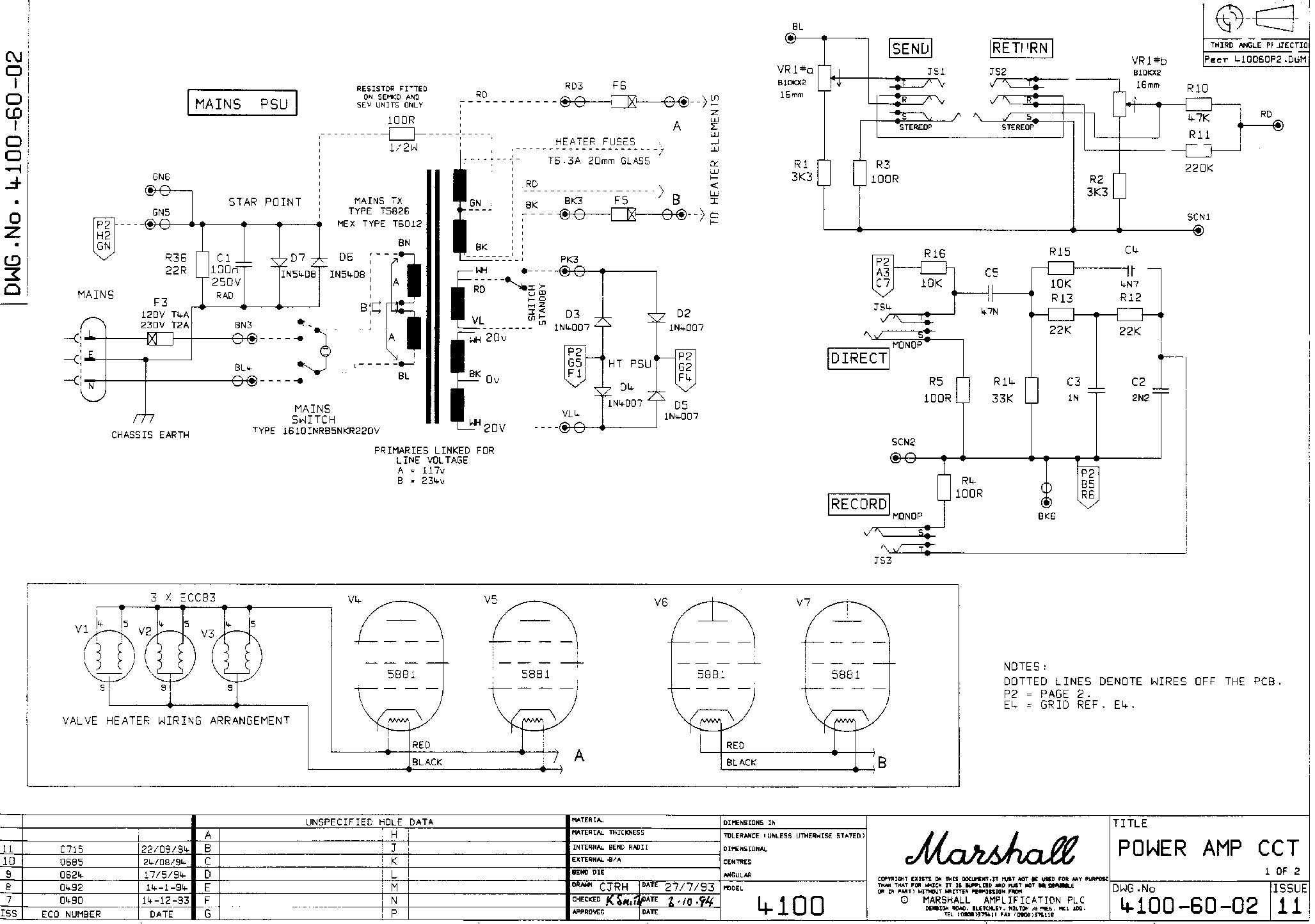

    https://www.drtube.nl/schematics/marshall/4100-60-02-1-iss11.gif

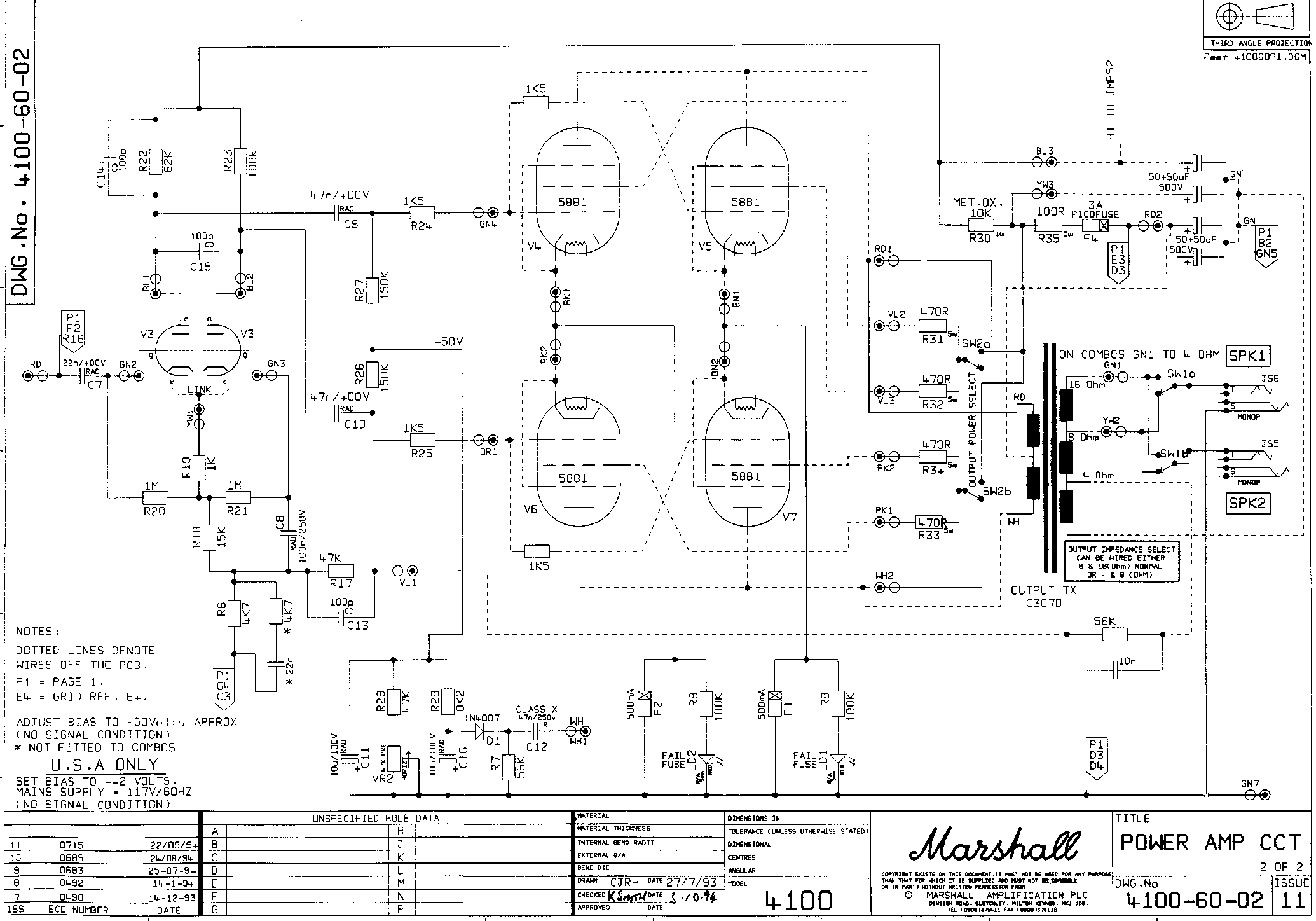

    https://www.drtube.nl/schematics/marshall/4100-60-02-2-iss11.gif
    All but the most expensive valve testers don’t tend to subject the valve under test to anywhere near the voltage level found in a guitar amp. They are fine for weeding out badly failed valves, but no good for confirming the remainder really are fit for service.

    Last edited: Jan 15, 2022
    XTRXTR, Crikey, PelliX and 4 others like this.
  3. tschrama

    tschrama Well-Known Member

    Joined:
    May 15, 2010
    Messages:
    1,475
    Likes Received:
    771
    Location:
    Netherlands
    No indication yet to replace capacitors.
    Try to isolate the problem
    Pull output tubes, still blowing fuse? If not, output stage is the problem.

    Put the output tubes back one by one and test in between. Etc etc etc

  4. DreamerDeceiver

    DreamerDeceiver Well-Known Member

    Joined:
    Jul 9, 2021
    Messages:
    1,388
    Likes Received:
    2,943
    Location:
    OZ
    Thanks for having the same year and model.

    This info is priceless.

  5. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    I have seen the light bulb used in radio circuits. Great idea.

    Pete Farrington likes this.
  6. Tatzmann

    Tatzmann Well-Known Member

    Joined:
    Nov 8, 2021
    Messages:
    591
    Likes Received:
    834
    Mains Fuse, how hard can it be.
    You are not fit to work on an amplifier.
    Turn it in.

    Last edited: Jan 15, 2022
  7. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    Thanks for the advice. There's always "one of you" around forums

  8. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    I built light bulb limiter today and tested the amp without any output tubes. Fuse OK. Now to the nervous part; move on and put back one tube at a time. I'll post news after I dig up some bravery.

    Pete Farrington likes this.
  9. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    Fails after first tube goes in, within 8 seconds. Light bulb starts to glow brighter, then....loud buzz as before and fuse blows.

  10. Pete Farrington

    Pete Farrington Well-Known Member

    Joined:
    Jan 18, 2021
    Messages:
    929
    Likes Received:
    945
    Location:
    Staffordshire UK
    What bulb wattage?
    With no valves in, note the VDC at pins 3,4,5 of the output valve sockets.

    XTRXTR likes this.
  11. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    Thank you sir. 40 Watt bulb. I will check the voltages.

  12. Pete Farrington

    Pete Farrington Well-Known Member

    Joined:
    Jan 18, 2021
    Messages:
    929
    Likes Received:
    945
    Location:
    Staffordshire UK
    I wonder how a 3A mains fuse could blow, with the current through it limited by a 40W bulb?

    tschrama and XTRXTR like this.
  13. neikeel

    neikeel Well-Known Member

    Joined:
    Feb 12, 2014
    Messages:
    6,651
    Likes Received:
    5,729
    You’ve had good advice thus far.
    Let’s break it down.
    3A mains fuse is there to protect/detect mains transformer, rectifier and first filter cap problems. So if it fails with mains on and HT off (ie in standby) the issue sits there somewhere.
    It is more common for a shorted out tube (or screen resistors) to take out the 1A HT fuse.
    I presume that your are using T rated (ie SLO blo) fuses?
    A 40w bulb at normal brightness will be 40/240 ie 1/6 of an amp. When it goes brighter- switch it off.

    mikroman likes this.
  14. Spanngitter

    Spanngitter Active Member

    Joined:
    Jan 22, 2019
    Messages:
    169
    Likes Received:
    171
    Location:
    Upper Palatinate / Bavaria
    On a side note:
    For 230/240Vac a T1.5A or max T2A is sufficient, for 110/120Vac Input you should be able to run on a T2A or max T3.15A

  15. mikroman

    mikroman New Member

    Joined:
    Jan 15, 2022
    Messages:
    7
    Likes Received:
    3
    This is a NA model with a 4A slo blo fuse. It won't blow in stand-by; but, about 8 seconds after switch on it fails. My thinking was the filter caps. And yes, excellent advice and thanks for steering me there without solving the problem for me.

  16. Pete Farrington

    Pete Farrington Well-Known Member

    Joined:
    Jan 18, 2021
    Messages:
    929
    Likes Received:
    945
    Location:
    Staffordshire UK
    I’m struggling to envisage how a 40W bulb could pass enough current to blow a 4A fuse
    Was the light bulb limiter in circuit?
